Cutting height: 160 mm
Knife-stroke: 39 mm
Motor speed:
– 2800 rpm – 50 Hz
– 3350 rpm – 60 Hz
Connection: 400 V, 50/60 Hz 3-phase
Power consumption: 790 W
Weight: 14,5 kg

Cutting height: 90 mm depending on material
Knife-stroke: 36 mm
Motor speed:
– 2800 rpm – 50 Hz
– 3350 rpm – 60 Hz
Connection: 230 V, 50 Hz AC 400 V, 50/60 Hz 3-phase
Power consumption: 245 and 370 W
Weight: 8,4 kg

Cutting height: 70 mm depending on material
Knife-stroke: 12-15-18 mm
Connection: 220-250 V, 50-60 Hz
Power consumption: 140 W
Weight: 6 kg

Cutting height: 20 mm depending on material
Cutter diameter: 200 mm (circular/multi-curved)
Cutter speed: 1350 rpm Option: 2800 / 1400 rpm
Connection: 400 V, 50 Hz 3-phase
Power consumption: 180W /300W
Weight: 9,5 kg

Cutting height: 55 mm depending on material
Cutter diameter: 120 mm (circular/multi-curved)
Cutter speed: 2800 rpm
Option: 2800 / 1400 rpm
Connection: 400 V, 50 Hz 3-phase
Power consumption: 370 W, 250/180 W
Weight: 10,5 kg

Cutting height: 25 mm depending on material
Cutter diameter: 100 mm (multi-curved cutter)
Cutter speed: 750 rpm
Connection: 220 -250 V, 50-60 Hz
Power consumption: 200 / 238 W
Weight: 3 kg

Cutting height: 27 mm depending on material
Cutter diameter: 80 mm (multi-curved cutter)
Cutter speed: 1150 rpm
Connection: 220 -250 V, 50-60 Hz
Power consumption: 140 W
Weight: 2,5 kg

Rechargeable handheld cutter MB 60
Cutting height: 8mm
Cutter speed: 1200 rpm
Weight: 1,2kg
Battery type: NICD
Nominal voltage: 9,6 V
Capacity: 1,2 AH

Cutting height: 8 mm
Cutter diameter: 50 mm
Cutter speed: 1.500 rpm
Connection: 220 -230 V50-60 Hz
Power consumption: approx. 56 W
Weight: 1.000 g (w/o cable)

Cutting height: 8 mm (depending on material)
Cutter diameter: 50 mm (multi-curved cutter)
Cutter speed: 2.600 rpm
Connection: 220 -250 V, 50-60 Hz
Power consumption: approx. 56 W
Weight: 850 g (w/o cable)

Cutting height: 8 mm
Cutter diameter: 50 mm
Cutter speed: 3.000 rpm
Connection: 220 -230 V50-60 Hz
Power consumption: approx. 56 W
Weight: approx. 850 g (w/o cable)

– cuts all textiles and almost all synthetic materials
– quiet, low-vibration operation
– light rollers with needle bearings
– consistently clean cutting
– perfect handling: single-handed machine operation with a clear view
– fully automatic grinding device – grinding belts can be easily and conveniently replaced.
– highest level of safety provided by the automatic finger guard (available as an option, mandatory in Germany).

Specifications:

1) KM-10-T(-WS) Three-phase version
Voltage:    3 ~ 400 V, 50–60 Hz
Power:    800 Watts
Cutting height:    210 mm
Weight:    approx. 15.5 kg
with automatic finger guard:    approx. 17 kg
Machine height:    approx. 620 mm
with automatic finger guard:    approx. 720 mm

– cuts all textiles and almost all synthetic materials
– quiet, low-vibration operation
– light rollers with needle bearings
– consistently clean cutting
– perfect handling: single-handed machine operation with a clear view
– fully automatic grinding device – grinding belts can be easily and conveniently replaced.
– highest level of safety provided by the automatic finger guard (available as an option, mandatory in Germany).

Specifications:

1) KM-8-S(-WS) single-phase version
Voltage:    1 ~ 230 V, 50–60 Hz
Power:    670 Watts
Cutting height:    160 mm
Weight:    approx. 10.5 kg
with automatic finger guard:    approx. 16.5 kg
Machine height:    approx. 520 mm
with automatic finger guard:    approx. 620 mm

2) KM-8-T(-WS) three-phase version
Voltage:    3 ~ 400 V, 50–60 Hz
Power:    800 Watts
Cutting height:    160 mm
Weight:    approx. 10.5 kg
with automatic finger guard:    approx. 16.5 kg
Machine height:    approx. 520 mm
with automatic finger guard:    approx. 620 mm

– cuts all textiles and almost all synthetic materials
– cutting height up to 210 mm at 800 watts
– quiet, low-vibration operation
– light rollers with needle bearings
– consistently clean cutting
– perfect handling: single-handed machine operation with a clear view
– fully automatic grinding device – grinding belts can be easily and conveniently replaced.
– highest level of safety provided by the automatic finger guard (available as an option, mandatory in Germany)

Specifications:

1) Voltage:    1 ~ 230 V, 50–60 Hz
Power:    300 Watts
Cutting height:    85 mm
Weight:    approx. 9.0 kg
with automatic finger guard:    approx. 10.5 kg
Machine height:    approx. 400 mm
with automatic finger guard:    approx. 500 mm

2) Voltage:    3 ~ 400 V, 50/60 Hz
Power:    375 Watts
Cutting height:    85 mm
Weight:    approx. 9.0 kg
with automatic finger guard:    approx. 10.5 kg
Machine height:    approx. 400 mm
with automatic finger guard:    approx. 500 mm

– small, space-saving electric shears with a 3-phase motor
– continuous runner
– with gearbox for high torque
– max. 16 mm cutting height
– always remains sharp due to the integrated grinding device
– high level of safety provided by the adjustable finger guard and fixed blade guard
– simple instalment using fastening threads in the mounting bracket.

Variants

bracket can be manufactured according to customer specification
blade wetting for cutting plastic.

Specifications:

Supply voltage:    3 ~ 400 V, 50–60 Hz
3 ~ 230 V, 50–60 Hz
Power:    120 W
Blade speed:    700 rpm
Blade diameter:    60 mm
Cutting speed:    132 m/min
Cutting height:    15 mm
Weight:    3.2 kg
Dimensions:    approx. 210 × 70 × 130 mm

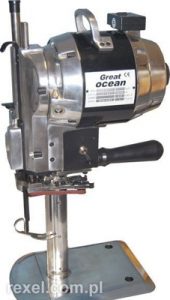

Straight knife machine CZD-3 series. Alternative fpr knife type Eastman 629X, Blue Streak. Perfect for cutting cotton, wool, linen, silk, plastic and leather.

Available knife sizes:

6 “- Cutting height 120 mm
8 “- Cutting height 160 mm
10 “- Cutting height 210 mm
12 “- Cutting height 260 mm

Power 750W, 230V, 50/60 Hz, 1 phase. Knives at our shop: 6 “, 7”, 8 “, 9”, 10 “, 12″, 13 ” and the grinding belts.

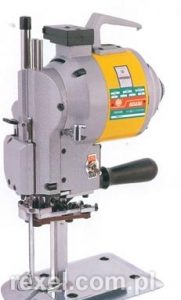

Ergonomic and easy to use, universal straight knife, equipped with automatic knife grinding device and lubrication system. Especially designed for cutting small layers. Little weight (only 9 kg) makes it very handy and convenient to use which enables smooth knife conduct during cutting fine woven fabrics and knitwears. Suitable for initial cuts as well as for final cuts. Foot construction additionally facilitate knife maneuvering and minimize risk connected with moving of material layers. It has features such as steady run and precise work.

Availiable knife size:
5″ – cutting height 90 mm

Power: 350W, 220V, 50/60Hz, 1 faza
Available knifes KM-5 and grinding belts.

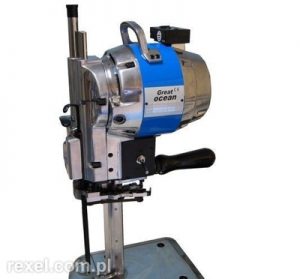

Substitute for Eastman 629X,
Blue Streak. Perfect for cutting cotton, wool, linen, silk, plastics and leather.

Available knife sizes:
8 “- Cutting height 160 mm
10 “- Cutting height 210 mm

Power 550W, 220V, 50/60 Hz, 1 phase
Available knifes HSS 6 “, 7”, 8 “, 9″, 10” and grinding belts.

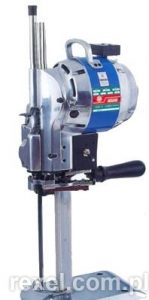

Straight knife machine CZD-3 series. Alternative fpr knife type Eastman 629X, Blue Streak. Perfect for cutting cotton, wool, linen, silk, plastic and leather.

Available knife sizes:

6 “- Cutting height 120 mm
8 “- Cutting height 160 mm
10 “- Cutting height 210 mm
12 “- Cutting height 260 mm

Power 750W, 230V, 50/60 Hz, 1 phase. Knives at our shop: 6 “, 7”, 8 “, 9”, 10 “, 12″, 13 ” and the grinding belts.

Substitute for Eastman 629X, Blue Streak. Perfect for cutting cotton, wool, linen, silk, plastics and leather.

Available knife sizes:
8 “- Cutting height 160 mm
10 “- Cutting height 210 mm

Power 550W, 220V, 50/60 Hz, 1 phase
Available knifes HSS 6 “, 7”, 8 “, 9″, 10” and grinding belts.

– cuts almost all textiles and synthetic materials
– wide variety of versions available
– customised solutions
– extra-powerful 440-Watt 3-phase motor
– Protection class IP54
– continuous runner
– break-proof handle
– always remains sharp with integrated grinding device
– high level of safety provided by adjustable finger guard and fixed – blade guard
– easily maintained – with central lubrication
– stable, wide base plate with smooth-running rollers
– compact dimensions

The X-130-E Series is available in two standard-versions:

X-130-E-4
high blade speed due to 4-speed gearbox
suitable for all normal textiles and synthetic materials
X-130-E-2
low blade speed due to 2-speed gearbox
designed for solid and heavy materials

Specifications:

Voltage:    1 ~ 220–230 V, 50–60 Hz
3 ~ 220–230 V, 50–60 Hz
3 ~ 380–400 V, 50–60 Hz
other voltages on request
Power:    440 Watts / 3 ~
340 Watts / 1 ~
Blade diameter:    130 mm
Blade speed:    280 rpm (-2) / 50 Hz
533 rpm (-4) / 50 Hz
Cutting speed:    114 m/min (-2) / 50 Hz
218 m/min (-4) / 50 Hz
Cutting height:    40–50 mm
Weight:    approx. 8,6 kg
Dimensions:    approx. 400 × 140 × 340 mm

Additional features

– extension handle
– push button instead of latching on/off switch
– bronze helical gear for higher loads
– high blade speed (1066 rpm) through 8gg metal worm wheel
– ST gliding foot for use with the X-130-E in our ST aluminium guide rails
– ball-bearing roller foot for use with our 80/20 steel guide rail for a particularly smooth movement and precise guidance
– steel guide rail SFS-140 for straight guidance of the machine over longer distances, to be used in conjunction with the standard base plate
