Pneumatic tables

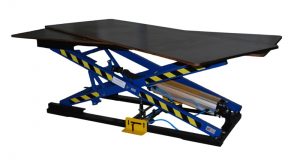

Pneumatic lifting table for upholstery ST-3
Pneumatic lifting table for upholstery ST-3 Image

Using this pneumatic table you can significantly improve both productivity and the quality of
furniture.
Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of
upholstered furniture.
– The height of the lifting table can be adjusted during the manufacturing process;
– The table is supported with a steel frame, pneumatic cylinder and control valve;
– The table is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off,
the table top will not drop);
– The table has a drawer for storing basic upholstery tools.

The table structure is made of steel. The pneumatic cylinder D125x600 is foot-controlled at both
sides of the table. Leverage raises the table top to a maximum height of 1280 mm and lowers it to 300 mm.
The particle board table top is covered with high-quality fitted carpet and furnished with stainless
steel slide blocks which help to move furniture pieces on the table as well as grounding electrostatic
charges. Prevention of electrostatic charges avoids the occurrence of sparks and fire.

Specifications:

Model:    ST-3
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    2000 mm x 900 mm (78.74″ x 35.43″)
Pneumatic cylinder:    D125x600
Minimum height:    320 mm (12.59″)
Maximum height:    1280 mm (50.39″)
Maximum load:    160 kg (352.74 lbs)

Send request for best price!







Lifting turntable ST-4 / B
Lifting turntable ST-4 / B Image

The Pneumatic turntable ST-4/B is designed for gluing, assembly, packaging furniture and its components.
The whole construction is made of a closed steel profiles ensuring proper durability and stiffness.
Steel powder coating adds an elegant look of the whole construction. The work-top made of 18 mm thick coated board and covered with 2mm thick stainless steel. The work top strengthened with four stabilizers at the bearings.
The whole mechanism, including pneumatics, protected by a steel folding curtain 1.5 mm thick and rubber sheets. Pneumatic elements are hidden inside the table on a special slider that prevents contamination of the mechanism and pneumatic details while gluing furniture.

Main advantages:
– Pneumatic tabletop blocking system: tabletop can be blocked in any of 12 positions with pneumatic cylinder underneath the tabletop.
– Work top covered with stainless steel remains clean a long time;
– Steel curtain provides a durable and reliable performance of the mechanism;
– Stainless steel tubes on the table top provide a minimal contact of furniture with the table surface;

Specifications:

Model:    ST-4/B
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    1200 mm x 750 mm (47.24″ x 29.52″)
Pneumatic cylinder:    D125x200
Minimum height:    500 mm (19.68″)
Maximum height:    820 mm (32.28″)
Maximum load:    90 kg (198.4 lbs)

Pneumatic turntable for gluing ST-4
Pneumatic turntable for gluing ST-4 Image

Our long experience in manufacturing pneumatic lifting tables and close cooperation with the Polish
largest manufacturer of upholstered furniture allowed us to create the perfect table for gluing furniture.
The Pneumatic turntable ST-4 is designed for gluing, assembly, packaging furniture and its components.
The whole construction is made of a closed steel profiles ensuring proper durability and stiffness.
Steel powder coating adds an elegant look of the whole construction. The work-top made of 18 mm thick
coated board and covered with 2mm thick stainless steel. The work top strengthened with four stabilizers at
the bearings.
The whole mechanism, including pneumatics, protected by a steel folding curtain 1.5 mm thick,
which is powder coated too. Pneumatic elements are hidden inside the table on a special slider that
prevents contamination of the mechanism and pneumatic details while gluing furniture.

Main advantages:
– Work top covered with stainless steel remains clean a long time;
– Steel cover provides a durable and reliable performance of the mechanism;
– Steel tubes on the table top provide a minimal contact of furniture with the table surface;
– Table is manufactured by Polish producer with years of experience.

Specifications:

Model:    ST-4
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    1200 mm x 750 mm (47.24″ x 29.52″)
Pneumatic cylinder:    D125x200
Minimum height:    500 mm (19.68″)
Maximum height:    820 mm (32.28″)
Maximum load:    90 kg (198.4 lbs)

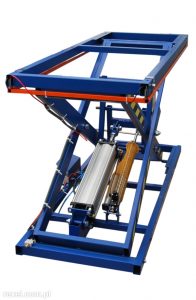

Pneumatic lifting table for upholstery without tabletop ST-3
Pneumatic lifting table for upholstery without tabletop ST-3 Image

Using this pneumatic table you can significantly improve both productivity and the quality of
furniture.

Assembly table with pneumatic drive. For general use in the upholstery industry, for manufacturing
of upholstered furniture.
– The height of the assembly table can be adjusted during the manufacturing process;
– The table is supported with a steel frame, pneumatic cylinder, and an automatic drive
– The automatic drive is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices;
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off,
the table top will not drop);
– The table has a drawer for storing basic upholstery tools.

Specifications:

Model:    ST-3
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    2000 mm x 900 mm (78.74″ x 35.43″)
Pneumatic cylinder:    D125x600
Minimum height:    320 mm (12.59″)
Maximum height:    1280 mm (50.39″)
Maximum load:    160 kg (352.74 lbs)

The table structure is made of steel. The pneumatic cylinder D125x600 is foot-controlled at both
sides of the table. Leverage raises the table top to a maximum height of 1280 mm and lowers it to 300 mm.
The particle board table top is covered with high-quality fitted carpet and furnished with stainless
steel slide blocks which help to move furniture pieces on the table as well as grounding electrostatic
charges. Prevention of electrostatic charges avoids the occurrence of sparks and fire.

Pneumatic lifting table for upholstery ST-2 / OK
Pneumatic lifting table for upholstery ST-2 / OK Image

DESCRIPTION:
Pneumatic turntable ST2/OK is designed for gluing, assembling, packing, upholstering of the furniture or textile materials. It is also perfect for cutting of the leather.
Tabletop is made of 25 mm chipboard covered with 10 mm thick PE (polyethylene) sheet. Tabletop is placed in powderpainted steel frame.
Specifications:
Model: ST-2/OK
Working pressure: 6 bar (87 PSI)
Tabletop dimensions: 1600 mm x 1000 mm (63.99″ x 39.37″)
Pneumatic cylinder: D125x230 400 mm (15.74″)
Minimum height: 400 mm (15.74″)
Maximum height: 780 mm (30.70″)
Maximum load: 90 kg (198.4 lbs)

Ask for more information!

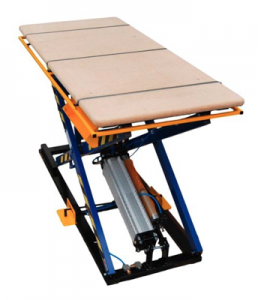

Pneumatic lifting table for upholstery ST-5
Pneumatic lifting table for upholstery ST-5 Image

REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the upholstery industry, for upholstered furniture manufacturing.

– The height of the lifting table can be quick adjusted during the manufacturing process;
– The table is supported with a steel frame and pneumatic cylinder;
– The cylinder is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices;
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off, the table top will not drop);

Main advantages of the lifting table for upholstery:

– Increases productivity of manufacturing;
– Increases quality of the furniture;
– Increases worker’s comfort (it won’t be necessary for worker to work on knees to upholster under the furniture);
– Takes the load off the employee’s spine;
– Very reliable and stable structure is made of steel profiles;
– Tested and approved by the leading Polish and foreign furniture manufacturers;
– Made in Poland.

Specifications:

Maximum lifting height:    1250 mm
Minimum height with table top dropped:    600 mm
Maximum lifting capacity:    70 kg
Working pressure::    6 bar
Lifting speed:    15 cm/s
Occupied surface of the basis:    700×900 mm
Weight:    100 kg

Pneumatic lifting table for upholstery with hydraulic brake system ST-3 / KP
Pneumatic lifting table for upholstery with hydraulic brake system ST-3 / KP Image

Using this pneumatic table you can significantly improve both productivity and the quality of
furniture.
Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of
upholstered furniture.
– Main feature of this table is so called Height Positioning System: when one presses a pedal, the table starts to move, making about 2 seconds pause at a certain point of movement. Height of this pause can be adjusted on a regulation profile under the table. This solution allows operator to work each time at necessary, comfortable height and not waste any time for small adjustments of table’s height.
– Anti-bouncing brake system that helps to prevent the table from bouncing.
– Table is supported with a steel frame, pneumatic cylinder, and an automatic drive;
– Cylinder is foot-controlled at both sides of the table;
– Table has a connection (output) for pneumatic devices
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off, the table top will not drop);
– The table has a drawer for storing basic upholstery tools.

Specifications:

Model:    ST-3/KP
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    2000 mm x 900 mm (78.74″ x 35.43″)
Pneumatic cylinder:    D125x600
Minimum height:    320 mm (12.59″)
Maximum height:    1280 mm (50.39″)
Maximum load:    160 kg (352.74 lbs)

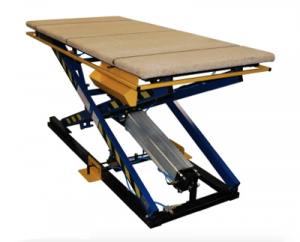

Pneumatic lifting table ST-3 / R mini
Pneumatic lifting table ST-3 / R mini Image

Using this pneumatic table you can significantly improve both productivity and the quality of
furniture.
Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of
upholstered furniture.
– The height of the lifting table can be adjusted during the manufacturing process;
– The table is supported with a steel frame, pneumatic cylinder, and an automatic drive;
– The automatic drive is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off,
the table top will not drop);
– The table has a drawer for storing basic upholstery tools.

The table structure is made of steel. The pneumatic cylinder D125x600 is foot-controlled at both
sides of the table. Leverage raises the table top to a maximum height of 1280 mm and lowers it to 300 mm.
The particle board table top is covered with high-quality fitted carpet and furnished with stainless
steel slide blocks which help to move furniture pieces on the table as well as grounding electrostatic
charges. Prevention of electrostatic charges avoids the occurrence of sparks and fire.

Specifications:

Model:    ST-3/R MINI
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    1600 mm x 900 mm (62.99″ x 35.43″)
Pneumatic cylinder:    D125x360
Minimum height:    320 mm
Maximum height:    1060 mm (41.73″)
Maximum load:    130 kg (286.6 lbs)

Pneumatic lifting turntable for leather ST-3/OS
Pneumatic lifting turntable for leather ST-3/OS Image

Table ST-3/OS is designed for leather cutting. Swivel tabletop has diameter 250 см and is made of laminated chipboard. Tabletop can be inclined at a 17° angle. This creates optimal working conditions during leather cutting – leather piece can be rotated without moving.

Key features:

– This solid construction is based on steel profiles and pneumatic cylinder.
– The pneumatic cylinder is foot-controlled.
– The table has a connection slot for pneumatic tools.
– After turning the table off it blocks automatically (cutting power off does not make the table fold).
– The table can be equipped with a drawer for upholstery tools.
– It has been proven that using our lifting tables decrease the use of energy by 15% in comparison to upholstery trestles.
– An increase in productivity of at least 14% has been observed when employees used our lifting tables instead of regular upholstery trestles.

Specifications:
Model: ST-3/OS
Working pressure: 6 bar (87 PSI)
Tabletop dimensions: ⌀ 2500 mm (98.42)
Pneumatic cylinder: D125x600, 2xD63x200
Minimum height: 800 mm (31.49″)
Maximum height: 1500 mm (59″)
Maximum load: 70 kg (154.3 lbs)

Pneumatic lifting table for upholstery ST-3 / B
Pneumatic lifting table for upholstery ST-3 / B Image

REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this
pneumatic table you can significantly improve both productivity and the quality of furniture. For general use
in the upholstery industry, for upholstered furniture manufacturing.
– The height of the lifting table can be quick adjusted during the manufacturing process;
– The table is supported with a steel frame, pneumatic cylinder, and an automatic drive;
– The automatic drive is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices;
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off,
the table top will not drop);
– The table has a drawer for storage basic upholstery tools.
Main advantages of the lifting table for upholstery:
– Increases productivity of manufacturing;
– Increases quality of the furniture;
– Increases worker’s comfort (it won’t be necessary for worker to work on knees to upholster under the
furniture);
– Takes the load off the employee’s spine;
– Very reliable and stable structure is made of steel profiles;
– Tested and approved by the leading Polish and foreign furniture manufacturers;
– Made in Poland;
– Table top covered with 2mm thick stainless steel.

Specifications:

Model:    ST-3/B
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    1940 mm x 940 mm
Pneumatic cylinder:    D125x600
Minimum height:    320 mm (12.59″)
Maximum height:    1280 mm (50.39″)
Maximum load:    130 kg (286.6 lbs)

Pneumatic lifting table ST-3 / R
Pneumatic lifting table ST-3 / R Image

REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture.
For general use in the upholstery industry, for upholstered furniture manufacturing.
– The height of the lifting table can be quick adjusted during the manufacturing process.
– The table is supported with a steel frame, servo-motor, and an automatic drive.
– The automatic drive is foot-controlled at both sides of the table.
– The table has a connection (output) for pneumatic devices.
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off, the table top will not drop).
– The table has a drawer for storage basic upholstery tools.
Main advantages of the lifting table for upholstery:
– Increases productivity of manufacturing.
– Increases quality of the furniture.
– Increases worker’s comfort (it won’t be necessary for worker to work on knees to upholster under the furniture).
– Takes the load off the employee’s spine.
– Very reliable and stable structure is made of steel profiles.
– Tested and approved by the leading Polish and foreign furniture manufacturers.
– Made in Poland.
Accessories:
– Steel tubes for raising furniture over the table for easy access to its bottom part.

Specifications:

Model:    ST-3/R
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    2000 mm x 900 mm (78.74″ x 35.43″)
Pneumatic cylinder:    D125x600
Minimum height:    320 mm (12.59″)
Maximum height:    1280 mm (50.39″)
Maximum load:    160 kg (352.74 lbs)

Pneumatic lifting table for upholstery ST-3 / BR
Pneumatic lifting table for upholstery ST-3 / BR Image

REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture.
For general use in the upholstery industry, for upholstered furniture manufacturing.
– The height of the lifting table can be quick adjusted during the manufacturing process.
– The table is supported with a steel frame, pneumatic cylinder, and an automatic drive.
– The automatic drive is foot-controlled at both sides of the table.
– The table has a connection (output) for pneumatic devices.
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off, the table top will not drop).
– The table has a drawer for storage basic upholstery tools.
Main advantages of the lifting table for upholstery:
– Increases productivity of manufacturing.
– Increases quality of the furniture.
– Increases worker’s comfort (it won’t be necessary for worker to work on knees to upholster under the furniture).
– Takes the load off the employee’s spine.
– Very reliable and stable structure is made of steel profiles.
– Tested and approved by the leading Polish and foreign furniture manufacturers.
– Made in Poland.
Accessories:
– Steel tubes for raising furniture over the table for easy access to its bottom part.
– Table top covered with 2 mm thick stainless steel.

Specifications:

Model:    ST-3/BR
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    1940 mm x 940 mm
Pneumatic cylinder:    D125x600
Minimum height:    320 mm (12.59″)
Maximum height:    1280 mm (50.39″)
Maximum load:    130 kg (286.6 lbs)

Pneumatic lifting table with hydraulic brake system ST-3 / K
Pneumatic lifting table with hydraulic brake system ST-3 / K Image

DESCRIPTION:

REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the upholstery industry, for upholstered furniture manufacturing.

– The height of the lifting table can be quick adjusted during the manufacturing process;
– The table is supported with a steel frame, pneumatic cylinder, and an automatic drive;
– The automatic drive is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices;
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off, the table top will not drop);
– The table has a drawer for storage basic upholstery tools.

Main advantages of the lifting table for upholstery:
– Hydraulic brake system for table stabilization;
– Increases quality of the furniture;
– Increases worker’s comfort (it won’t be necessary for worker to work on knees to upholster under the furniture);
– Takes the load off the employee’s spine;
– Very reliable and stable structure is made of steel profiles;
– Tested and approved by the leading Polish and foreign furniture manufacturers;
– Made in Poland.
– Increases productivity of manufacturing;

Specifications:
Model: ST-3/K
Working pressure: 6 bar (87 PSI)
Tabletop dimensions: 2000 mm x 900 mm (78.74″ x 35.43″)
Pneumatic cylinder: D125x600 320 mm (12.59″)
Minimum height: 320 mm (12.59″)
Maximum height: 1280 mm (50.39″)
Maximum load: 160 kg (352.74 lbs)



Ask for more information!

Pneumatic lifting table ST-3 / PE MINI
Pneumatic lifting table ST-3 / PE MINI Image

Pneumatic table ST-3/PE MINI is designed for gluing, assembling, packing, upholstering of the furniture or textile materials.

Tabletop dimensions:    850 x 1600 mm
Maximum lifting height:    1045 mm
Minimum height with table top dropped:    260 mm
Maximum lifting capacity:    130 kg
Working pressure:    6 bar
Lifting speed:    15 cm/s
Dropping speed:    15 cm/s
Occupied surface of the basis:    700 x 1420 mm

Tabletop is made of 25 mm chipboard covered with 10 mm thick PE (polyethylene) sheet. Tabletop is placed in powderpainted steel frame.

Send request for best price!

Pneumatic lifting table ST-3 / KRB
Pneumatic lifting table ST-3 / KRB Image

REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this
pneumatic table you can significantly improve both productivity and the quality of furniture. For general use
in the upholstery industry, for upholstered furniture manufacturing.

– The height of the lifting table can be quick adjusted during the manufacturing process;
– The table is supported with a steel frame, pneumatic cylinder, and an automatic drive;
– The automatic drive is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices;
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off,
the table top will not drop);
– The table has a drawer for storage basic upholstery tools.

Main advantages of the lifting table for upholstery:

– Increases quality of the furniture;
– Increases worker’s comfort (it won’t be necessary for worker to work on knees to upholster under the
furniture);
– Takes the load off the employee’s spine;
– Very reliable and stable structure is made of steel profiles;
– Tested and approved by the leading Polish and foreign furniture manufacturers;
– Made in Poland.
– Increases productivity of manufacturing;
– Safety frame under the tabletop that prevents further dropping of the table in situations when it gets
blocked by something (may be ordered on request).
– Hydraulic brake system for table stabilization;

Specifications:

Model:    ST-3/KRB
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    2000 mm x 900 mm (78.74″ x 35.43″)
Pneumatic cylinder:    D125x600
Minimum height:    320 mm (12.59″)
Maximum height:    1280 mm (50.39″)
Maximum load:    160 kg (352.74 lbs)

Send request for best price!

Pneumatic lifting table ST-3 / RB
Pneumatic lifting table ST-3 / RB Image

REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this
pneumatic table you can significantly improve both productivity and the quality of furniture. For general use
in the upholstery industry, for upholstered furniture manufacturing.

– The height of the lifting table can be quick adjusted during the manufacturing process;
– The table is supported with a steel frame, pneumatic cylinder.
– The cylinder is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices;
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off,
the table top will not drop);
– The table has a drawer for storage basic upholstery tools.

Main advantages of the lifting table for upholstery:

– Increases quality of the furniture;
– Increases worker’s comfort (it won’t be necessary for worker to work on knees to upholster under the
furniture);
– Takes the load off the employee’s spine;
– Very reliable and stable structure is made of steel profiles;
– Tested and approved by the leading Polish and foreign furniture manufacturers;
– Made in Poland.
– Increases productivity of manufacturing;
– Safety frame under the tabletop that prevents further dropping of the table in situations when it gets
blocked by something (may be ordered on request).

Specifications:

Model:    ST-3/RB
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    2000 mm x 900 mm (78.74″ x 35.43″)
Pneumatic cylinder:    D125x600
Minimum height:    320 mm (12.59″)
Maximum height:    1280 mm (50.39″)
Maximum load:    160 kg (352.74 lbs)

Pneumatic lifting table for upholstery ST-3 / WR
Pneumatic lifting table for upholstery ST-3 / WR Image

REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this
pneumatic table you can significantly improve both productivity and the quality of furniture. For general use
in the upholstery industry, for upholstered furniture manufacturing.

– The height of the lifting table can be quick adjusted during the manufacturing process;
– The table is supported with a steel frame, servo-motor, and an automatic drive;
– The automatic drive is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices;
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off,
the table top will not drop);
– The table has a drawer for storage basic upholstery tools.

Main advantages of the lifting table for upholstery:
– Increases productivity of manufacturing;
– Increases quality of the furniture;
– Increases worker’s comfort (it won’t be necessary for worker to work on knees to upholster under the
furniture);
– Takes the load off the employee’s spine;
– Very reliable and stable structure is made of steel profiles;
– Tested and approved by the leading Polish and foreign furniture manufacturers;
– Made in Poland.

Additional accessories:
– Safety frame under the tabletop that prevents further dropping of the table in situations when it gets
blocked by something (may be ordered on request).
– Table top covered with 2mm thick stainless steel;
– Table top with carpet covering;
– Table top with plywood covering.

Specifications:

Model:    ST-3/WR
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    –
Pneumatic cylinder:    D125x485
Minimum height:    300 mm (11.81″)
Maximum height:    1100 mm (50.39″)
Maximum load:    160 kg (352.74 lbs)

Pneumatic lifting table for upholstery ST-3 / O
Pneumatic lifting table for upholstery ST-3 / O Image

Using this pneumatic table you can significantly improve both productivity and the quality of
furniture.
Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of upholstered furniture.
– The height of the lifting table can be adjusted during the manufacturing process;
– The table is supported with a steel frame, pneumatic cylinder, and an automatic drive;
– The automatic drive is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off,
the table top will not drop);
– The table has a drawer for storing basic upholstery tools.

The table structure is made of steel. The pneumatic cylinder D125x600 is foot-controlled at both
sides of the table. Leverage raises the table top to a maximum height of 1280 mm and lowers it to 300 mm. Tabletop is swivel, made of high quality, water-resistant non-slip plywood.

Specifications:

Tabletop dimensions:    2000 x 900 mm
Maximum lifting height:    1280 mm
Minimum height with table top dropped:    300 mm
Maximum lifting capacity:    160 kg
Working pressure:    6 bar
Occupied surface of the basis:    700 x 1850 mm
Cylinder:    D 125

Pneumatic lifting table for upholstery ST-3 / OB
Pneumatic lifting table for upholstery ST-3 / OB Image

Using this pneumatic table you can significantly improve both productivity and the quality of
furniture.
Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of
upholstered furniture.
– Main feature of this table is so called Height Positioning System: when one presses a pedal, the table starts to move, making about 2 seconds pause at a certain point of movement. Height of this pause can be adjusted on a regulation profile under the table. This solution allows upholster to work each time at necessary, comfortable height and not waste any time for small adjustments of table’s height.
– Swivel tabletop with spring brake system, blocks each 90 degrees is made of high quality, water-resistant plywood.    – The height of the lifting table can be adjusted during the manufacturing process;
– Table is supported with a steel frame, pneumatic cylinder, and an automatic drive;
– Cylinder is foot-controlled at both sides of the table;
– Table has a connection (output) for pneumatic devices
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off, the table top will not drop);
– The table has a drawer for storing basic upholstery tools.

The table structure is made of steel profiles. The pneumatic cylinder D125x350 is foot-controlled at both sides of the table.

Specifications:

Model:    ST-3/OB
Ciśnienie robocze:    6 bar (87 PSI)
Wymiary blatu:    2000 mm x 1000 mm (78.74″ x 39.37″)
Cylinder pneumatyczny:    D125x360
Wysokość minimalna:    410 mm (16.14″)
Wysokość maksymalna:    1190 mm (46.85″)
Udźwig maksymalny:    100 kg (220.4 lbs)

Pneumatic lifting table for upholstery ST-3/ROL Mini
Pneumatic lifting table for upholstery ST-3/ROL Mini Image

Table ST-3/ROL MINI table is equipped with rollers instead of tabletop. The rollers reduce surface friction, which allows the materials to be manually moved without using force. Other type of rollers on request.

Key features:

– This solid construction is based on steel profiles and pneumatic cylinder.
– The pneumatic cylinder is foot-controlled.
– The table has a connection slot for pneumatic tools.
– After turning the table off it blocks automatically (cutting power off does not make the table fold).
– The table can be equipped with a drawer for upholstery tools.
– It has been proven that using our lifting tables decrease the use of energy by 15% in comparison to upholstery trestles.
– An increase in productivity of at least 14% has been observed when employees used our lifting tables instead of regular upholstery trestles.

Specifications:

Model:    ST-3/ROL MINI
Working pressure:    6 bar (87 PSI)
Tabletop dimensions:    1436 mm x 900 mm (56.53″ x 35.43″)
Pneumatic cylinder:    D125x360
Minimum height:    320 mm (12.59″)
Maximum height:    1080 mm (24.51″)
Maximum load:    130 kg (286.6 lbs)

Pneumatic tables
Pneumatic lifting table for upholstery ST-3 Image
Pneumatic lifting table for upholstery ST-3
Using this pneumatic table you can significantly improve both productivity and the quality of furniture. Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of upholstered f... Read More
Lifting turntable ST-4 / B Image
Lifting turntable ST-4 / B
The Pneumatic turntable ST-4/B is designed for gluing, assembly, packaging furniture and its components. The whole construction is made of a closed steel profiles ensuring proper durability and stiffness. Steel powder coating... Read More
Pneumatic turntable for gluing ST-4 Image
Pneumatic turntable for gluing ST-4
Our long experience in manufacturing pneumatic lifting tables and close cooperation with the Polish largest manufacturer of upholstered furniture allowed us to create the perfect table for gluing furniture. The Pneumatic turn... Read More
Pneumatic lifting table for upholstery without tabletop ST-3 Image
Pneumatic lifting table for upholstery without tabletop ST-3
Using this pneumatic table you can significantly improve both productivity and the quality of furniture. Assembly table with pneumatic drive. For general use in the upholstery industry, for manufacturing of upholstered... Read More
Pneumatic lifting table for upholstery ST-2 / OK Image
Pneumatic lifting table for upholstery ST-2 / OK
DESCRIPTION: Pneumatic turntable ST2/OK is designed for gluing, assembling, packing, upholstering of the furniture or textile materials. It is also perfect for cutting of the leather. Tabletop is made of 25 mm chipboard cover... Read More
Pneumatic lifting table for upholstery ST-5 Image
Pneumatic lifting table for upholstery ST-5
REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the upholstery industry, ... Read More
Pneumatic lifting table for upholstery with hydraulic brake system ST-3 / KP Image
Pneumatic lifting table for upholstery with hydraulic brake system ST-3 / KP
Using this pneumatic table you can significantly improve both productivity and the quality of furniture. Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of upholstered f... Read More
Pneumatic lifting table ST-3 / R mini Image
Pneumatic lifting table ST-3 / R mini
Using this pneumatic table you can significantly improve both productivity and the quality of furniture. Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of upholstered f... Read More
Pneumatic lifting turntable for leather ST-3/OS Image
Pneumatic lifting turntable for leather ST-3/OS
Table ST-3/OS is designed for leather cutting. Swivel tabletop has diameter 250 см and is made of laminated chipboard. Tabletop can be inclined at a 17° angle. This creates optimal working conditions during leather cutting –... Read More
Pneumatic lifting table for upholstery ST-3 / B Image
Pneumatic lifting table for upholstery ST-3 / B
REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the upholster... Read More
Pneumatic lifting table ST-3 / R Image
Pneumatic lifting table ST-3 / R
REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the upholstery indu... Read More
Pneumatic lifting table for upholstery ST-3 / BR Image
Pneumatic lifting table for upholstery ST-3 / BR
REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantl... Read More
Pneumatic lifting table with hydraulic brake system ST-3 / K Image
Pneumatic lifting table with hydraulic brake system ST-3 / K
DESCRIPTION: REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the u... Read More
Pneumatic lifting table ST-3 / PE MINI Image
Pneumatic lifting table ST-3 / PE MINI
Pneumatic table ST-3/PE MINI is designed for gluing, assembling, packing, upholstering of the furniture or textile materials. Tabletop dimensions:    850 x 1600 mm Maximum lifting height:    1045 mm Minimum heigh... Read More
Pneumatic lifting table ST-3 / KRB Image
Pneumatic lifting table ST-3 / KRB
REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the upholster... Read More
Pneumatic lifting table ST-3 / RB Image
Pneumatic lifting table ST-3 / RB
REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the upholster... Read More
Pneumatic lifting table for upholstery ST-3 / WR Image
Pneumatic lifting table for upholstery ST-3 / WR
REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the upholster... Read More
Pneumatic lifting table for upholstery ST-3 / O Image
Pneumatic lifting table for upholstery ST-3 / O
Using this pneumatic table you can significantly improve both productivity and the quality of furniture. Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of upholstered furnitu... Read More
Pneumatic lifting table for upholstery ST-3 / OB Image
Pneumatic lifting table for upholstery ST-3 / OB
Using this pneumatic table you can significantly improve both productivity and the quality of furniture. Lifting table with pneumatic drive. For general use in the upholstery industry, for manufacturing of upholstered f... Read More
Pneumatic lifting table for upholstery ST-3/ROL Mini Image
Pneumatic lifting table for upholstery ST-3/ROL Mini
Table ST-3/ROL MINI table is equipped with rollers instead of tabletop. The rollers reduce surface friction, which allows the materials to be manually moved without using force. Other type of rollers on request. K... Read More

Contact Us
