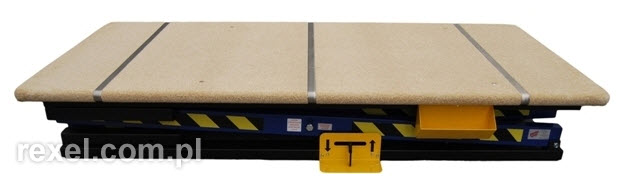

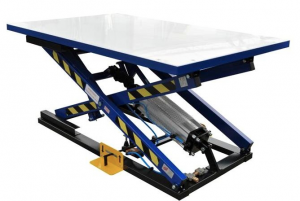

Pneumatic lifting table with hydraulic brake system ST-3 / K

DESCRIPTION:

REXEL Company is a leading manufacturer of the lifting tables for upholstery in Poland. Using this pneumatic table you can significantly improve both productivity and the quality of furniture. For general use in the upholstery industry, for upholstered furniture manufacturing.

– The height of the lifting table can be quick adjusted during the manufacturing process;
– The table is supported with a steel frame, pneumatic cylinder, and an automatic drive;
– The automatic drive is foot-controlled at both sides of the table;
– The table has a connection (output) for pneumatic devices;
– After the table is cut off from the power supply, it is automatically blocked (if the power supply is cut off, the table top will not drop);
– The table has a drawer for storage basic upholstery tools.

Main advantages of the lifting table for upholstery:
– Hydraulic brake system for table stabilization;
– Increases quality of the furniture;
– Increases worker’s comfort (it won’t be necessary for worker to work on knees to upholster under the furniture);
– Takes the load off the employee’s spine;
– Very reliable and stable structure is made of steel profiles;
– Tested and approved by the leading Polish and foreign furniture manufacturers;
– Made in Poland.
– Increases productivity of manufacturing;

Specifications:
Model: ST-3/K
Working pressure: 6 bar (87 PSI)
Tabletop dimensions: 2000 mm x 900 mm (78.74″ x 35.43″)
Pneumatic cylinder: D125x600 320 mm (12.59″)
Minimum height: 320 mm (12.59″)
Maximum height: 1280 mm (50.39″)
Maximum load: 160 kg (352.74 lbs)



Ask for more information!
