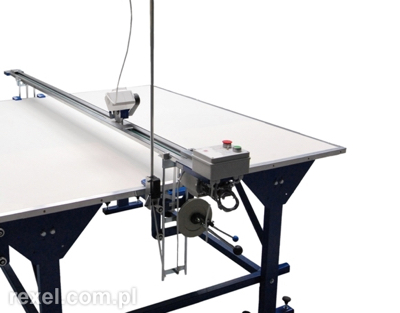

The automatic end cutter OT-1/A is used in plants or wholesale outlets for cutting textile materials.
It quickly and accurately cuts a segment of fabric to the required length. Therefore, it can be installed as an
additional device for the cutting table, rewinding machine, or the textile inspection machine. On these
machines can be installed the cutting length counter and the counter of cut sections.
Working principle:
The work cycle on the end cutter OT-1/A is automatic (While cutting, the material knife moves in the
guide way independently). At client’s request, REXEL will produce an end cutter the necessary length (e.g.
for a non-standard width of cutting table).

Specifications:

Voltage   230V
Current   1,04A
Knife motor power   120W
Trolley motor power   120W
Blade diameter   108 mm
Round blade speed    2200 RPM
Trolley movement speed    0,5 m/s
Gear gable diamter   5 mm
Toothed belt type  T5/280 mm(width.9~10 mm)
