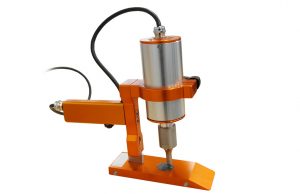

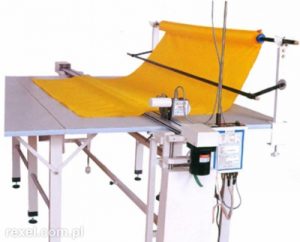

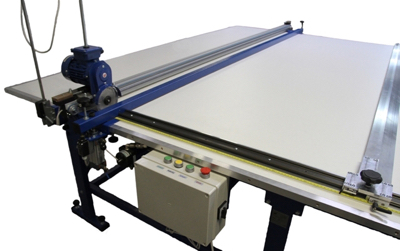

The End cutter OT-3/S is intended for cutting solid and heavy materials and is widely used for material cutting during manufacturing process. On your request we can develop OT-3/S for cutting of: plastic, polyester, PVC, felt, carpets, coco mats. Maximum cutting thickness is up to 2 cm, depending on the type of material. The advantage of this cutting table is that through the thick material goes just a thin blade, not the leg of cutting knife.
Pay attention to the energy consumption of this machine: the motor that drives the circular blade is used for moving the cut-off device on guide (1 motor performs two functions).
Another advantage is the absence of idle (process of cutting takes place in two directions).
Pressing a button on the control box at any time you can stop end cutter e.g. to change the direction
and continue cutting.
The kit includes pneumatic clamping line, which will provide a strong and stable pinning of the material. You can adjust the clamping line by using the joystick. Working air pressure for the clamping line is 3-5 atmospheres.
Is supplied in a wooden box that provides reliable protection the equipment during transportation.

Specifications:
Power supply: ~ 3phase/400V/50Hz
Motor power: 250W
Round knife speed: 1450 rpm
Round knife diameter: 125 mm (optional – 150 mm)
Max. cutting speed: 0,4 m/s
Max. cutting length: 2500 mm
Clamping line working pressure: 3-5 atm
